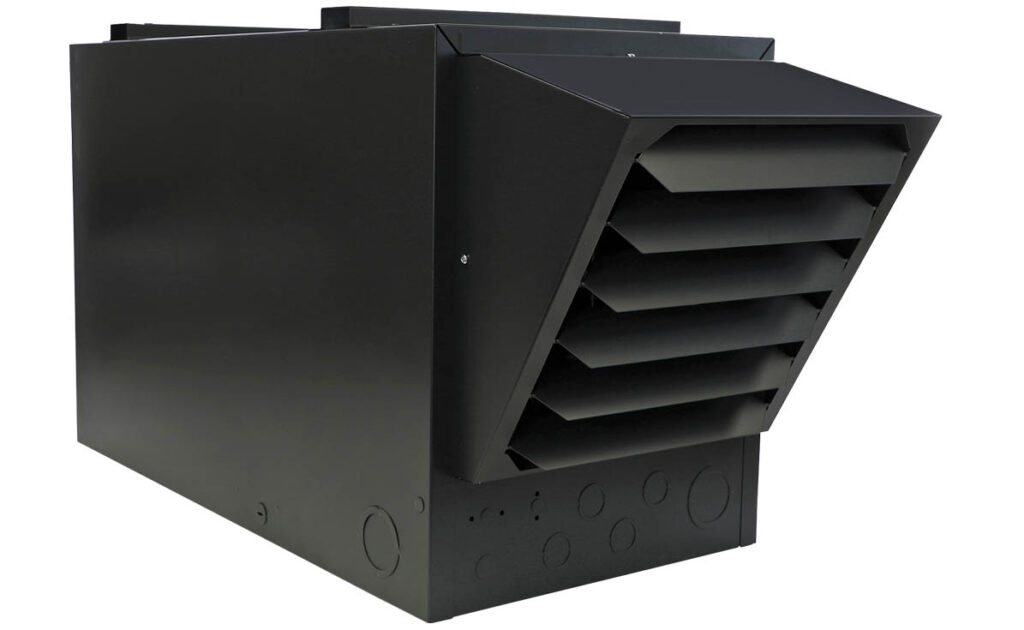

MODEL KFUH

high air velocity unit heater

The KFUH series high air velocity unit heater is an efficient, dependable unit heater perfectly suited for high ceiling applications such as warehouses, parking garages and docks. The 3-speed, high-capacity motor and blower quietly delivers large volumes of air ranging from 775 to 1540 CFM minimum. With welded mounting channels on the unit, the heater may be mounted at any angle. Safety screens are provided at both the air intake and discharge aperture. The intake filter is replaceable. Thermostat may be ordered separately.

  • Heavy Duty Open Coil Element
  • Direct Drive Air Over Type Motor
  • Dual Inlet Industrial Blower
  • Horizontal or Vertical Mount
  • Quiet Switching Relays
  • Replaceable Intake Filter
  • Ductable on Intake and Outlet
  • 24 Volt Control
  • ECM Motor (optional)
  • Proudly made in the USA
  • 5-year warranty

High Ceilings. No Problem.

Perfectly suited for high ceiling applications such as warehouses, parking garages and docks. The 3-speed, high-capacity motor and blower quietly delivers large volumes of air ranging from 775 to 1540 CFM minimum.

Now That’s Smart!

Mount At Any Angle

With welded mounting channels on the unit, the heater may be mounted at any angle. Safety screens are provided at both the air intake and discharge aperture. The intake filter is replaceable. Thermostat may be ordered separately.

Available Models

Ordering Information

MODELVOLTSKILO WATTSBTUHAMPS# OF ELEMENTSMOTOR HPPURCHASE
KFUH2003-1208310.214.411/5Buy Now
KFUH2404-1240413.616.711/5Buy Now
KFUH2005-1208517.12411/5Buy Now
KFUH2405-1240517.120.811/5Buy Now
KFUH4805-1480517.110.411/5Buy Now
KFUH2006-1208620.52521/5Buy Now
KFUH2408-1240826.933.321/5Buy Now
KFUH2010-12081034.14821/5Buy Now
KFUH2410-12401034.141.721/5Buy Now
KFUH4810-14801034.120.821/5Buy Now
KFUH2412-124011.539.247.921/5Buy Now
KFUH4812-148011.539.223.921/5Buy Now
KFUH2015-12081551.272.131/5Buy Now
KFUH2415-12401551.262.531/5Buy Now
KFUH4815-14801551.231.231/5Buy Now
KFUH2418-124017.2558.882.931/5Buy Now
KFUH4818-148017.2558.835.931/5Buy Now
KFUH2020-12082068.396.241/3Buy Now
KFUH2420-12402068.383.341/3Buy Now
KFUH4820-14802068.341.741/3Buy Now
KFUH2025-12082585.3120.251/3Buy Now
KFUH2425-12402585.3104.251/3Buy Now
KFUH4825-14802585.352.151/3Buy Now
KFUH2030-120830102.4144.261/3Buy Now
KFUH2430-124030102.412561/3Buy Now
KFUH4830-148030102.462.561/3Buy Now
KFUH2435-124034.5117.7143.761/3Buy Now
KFUH4835-148034.5117.771.861/3Buy Now

Ordering Information

MODELVOLTSKILO WATTSBTUHAMPS# OF ELEMENTSMOTOR HPPURCHASE
KFUH2405-3240517.11331/5Buy Now
KFUH4805-3480517.1731/5Buy Now
KFUH2009-3208930.721.631/5Buy Now
KFUH2410-32401034.124.131/5Buy Now
KFUH4810-34801034.11231/5Buy Now
KFUH2012-320811.2538.431.231/5Buy Now
KFUH2412-32401240.928.931/5Buy Now
KFUH4812-34801240.914.431/5Buy Now
KFUH2015-32081551.241.631/5Buy Now
KFUH2415-32401551.236.131/5Buy Now
KFUH4815-34801551.218.131/5Buy Now
KFUH2418-324017.2558.843.331/5Buy Now
KFUH4818-348017.2558.820.731/5Buy Now
KFUH2420-32402068.34841/5Buy Now
KFUH4820-34802068.32441/5Buy Now
KFUH2022-320822.576.862.561/3Buy Now
KFUH2424-32402481.657.761/3Buy Now
KFUH4824-34802581.628.861/3Buy Now
KFUH2030-320830102.483.361/3Buy Now
KFUH2430-324030102.472.261/3Buy Now
KFUH4830-348030102.436.161/3Buy Now
KFUH2435-324034.5117.782.961/3Buy Now
KFUH4835-348034.5117.741.561/3Buy Now

Options

ADD SUFFIX:DESCRIPTION
-2S12 Stage Control 1-Phase models
-2S32 Stage Control 3-Phase models (5 kW increments only)
-DS4040 Amp, 3-Pole Non-Fused Locking Disconnect Switch
-DS6060 Amp, 3-Pole Non-Fused Locking Disconnect Switch
-DS8080 Amp, 3-Pole Non-Fused Locking Disconnect Switch
-DS100100 Amp, 3-Pole Non-Fused Locking Disconnect Switch
-T1-Pole Thermostat

Diffuser Options

MODELUPCDESCRIPTIONWEIGHT (LBS.)
KFUH-DIFFUSER15741Standard KFUH Air Diffuser5
KFUH-ND15725No Diffuser, 1" duct collar only discharge side for connection to 14" x 14" duct"N/A
KFUH-RD15743Radial diffuser for wide pattern heat dispersion4
KFUH-90D15728Right angle elbow (90°) diffuser with adjustable louvers15
KFUH-90RD15729Right angle elbow (90°) with radial diffuser14

Factory Installed Options

MODELUPCDESCRIPTIONWEIGHT (LBS.)
KFUH-1/3HPNAUpgrade to 1/3 HP Motor & Blower for 3-18KW unitsN/A
KFUH-1/2HPNAUpgrade to 1/2 HP Motor & Blower for 20-35KW unitsN/A
KFUH-ECMNAUpgrade to ECM Motor 1/3 HPN/A
KFUH-T15747Factory Installed Stat (SPST). Temperature range 40°F to 100°FN/A
KFUH-2TS15707Factory Installed Stat (DPST). Temperature range 40°F to 100°FN/A
KFUH-SF15708Factory Installed Summer Fan SwitchN/A
KFUH-2S115714Control Relays & Contactor for 2-Stage Element Control, 1-Phase heaters. Available on certain models.N/A
KFUH-2S315716Control Relays & Contactor for 2-Stage Element Control, 3-Phase heaters. Available on certain models.N/A
K-DS40NAFactory Installed 40 Amp, 3-Pole Non-Fused Locking Disconnect SwitchN/A
K-DS60NAFactory Installed 60 Amp, 3-Pole Non-Fused Locking Disconnect SwitchNA
K-DS80NAFactory Installed 80 Amp, 3-Pole Non-Fused Locking Disconnect SwitchN/A
K-DS100NAFactory Installed 100 Amp, 3-Pole Non-Fused Locking Disconnect SwitchN/A
1E30-91019000Wall mount thermostat, 24V, range 50°- 90°1
KFUH-PTBL17216Kit to make KFUH Portable. Includes casters and mounting bracket (No Cord)N/A

Engineering Specs

Contractor shall supply and install KFUH Series high air velocity unit heaters manufactured by King Electrical Mfg. Company. Heaters shall be of the wattage and voltage as indicated on the plans.

Transformer: Each unit is equipped with a heavy duty low voltage (24 Volt) transformer for the thermostat control circuit.

Heating Elements: Quick heating, long life Ni-Chrome elements are sized to provide proper watt density for maximum heat dissipation by fan-forced air convection currents.

Terminal Block: For single strike field wiring.

Low Voltage Terminal Block: For 24 Volt control.

Air Filter: Convenient access for replacement of standard 16” x 20” x 1” filter.

Motor: Long life, 48 frame capacitor run, thermally protected, permanently lubricated, direct drive motor (no belts to adjust or slip). This low noise, up to 3-speed motor is designed for maintenance-free operation.

Overcurrent Protection: 208 and 240 volt KFUH models have 60 amp circuit breakers with single strike terminal block. 480 volt models have single strike terminal block. Units over 48 amps have 60 amp fusing.

Limit Control: Integral automatic high temperature limit control in each heating element bank prevents the delivery of air at unsafe temperatures. 20-35 kW use a manual reset limit control to completely shut the unit heater off should overtemperature occur.

Fan Relay: Heavy duty fan relay standard with summer fan operation.

Approvals: UL (E41422)
